Datalogic QuickScan I QD2100 Barcode Scanner Datalogic QuickScan I QD2100 Barcode Scanner

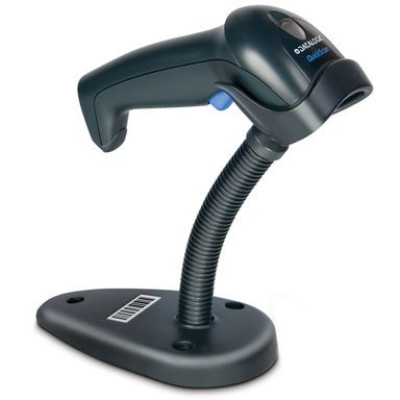

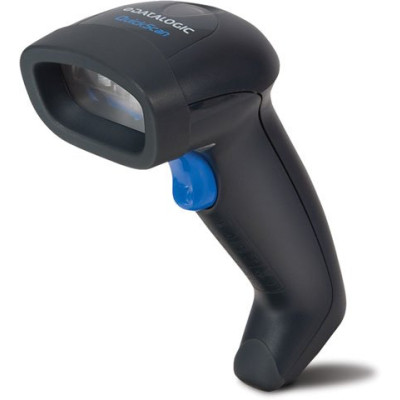

Datalogic QuickScan I QD2100 Barcode Scanner

Datalogic QuickScan I QD2100 Barcode Scanner

The QuickScan reader series is Datalogic ADC's value line of general purpose handheld data collection products. The QuickScan I QD2100 linear imaging reader is an entry level product that is perfect for use in retail and office environments plus activities associated with couriers and postal services.
Discontinued - Need Assistance
See all options
DataLogic QuickScan I QD2100 Specs DataLogic QuickScan I QD2100 Specs (pdf)
Decoding Capability
  • 1D / Linear codes
    • Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
  • Postal Codes
    • China Post
  • Stacked Codes
    • GS1 DataBar Expanded Stacked
    • GS1 DataBar Stacked
    • GS1 DataBar Stacked Omnidirectional
Electrical
  • Current
    • Operating (Typical)
      • 340 mA @ 5 VDC
    • Standby/Idle (Typical)
      • 190 mA @ 5 VDC
  • Input Voltage
    • QD2110
      4 -14 VDC
    • QD2130
      5 VDC +/- 10%
Environmental
  • Ambient Light
    • 100,000 lux
  • Drop Resistance
    • Withstands repeated drops from 1.5 m / 4.9 ft onto a concrete surface
  • ESD Protection (Air Discharge)
    • 20 kV
  • Humidity (Non-Condensing)
    • 5 - 95%
  • Particulate and Water Sealing
    • IP42
  • Temperature
    • Operating
      • 0 to 50 ?C / 32 to 122 ?F
    • Storage/Transport
      • -40 to 70 ?C / -40 to 158 ?F
Interfaces
  • RS-232 / IBM 46XX / USB Multi-Interface
    • QD2100
  • RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
    • QD2130
Physical Characteristics
  • Colors Available
    • Black
    • White
  • Dimensions
    • 17.0 x 7.1 x 6.6 cm / 6.7 x 2.8 x 2.6 in
  • Weight
    • 121.9 g / 4.3 oz
Reading Performance
  • Light Source
    • Red LED 610-650 nm
  • Print Contrast Ratio (Minimum)
    • 15%
  • Read Rate (Maximum)
    • 270 reads/sec.
  • Reading Angle
    • Pitch
      • +/- 65?
    • Roll (Tilt)
      • +/- 45?
    • Skew (Yaw)
      • +/- 65?
  • Reading Indicators
    • Beeper (Adjustable Tone)
    • Datalogic 'Green Spot' Good Read Feedback
    • Good Read LED
  • Resolution (Maximum)
    • 0.102 mm / 4 mils
Reading Ranges - Typical Depth of Field
  • Minimum distance determined by symbol length and scan angle.
  • Printing resolution, contrast, and ambient light dependent.
  • 4 mils
    • 2.0 to 11.0 cm / 0.8 to 4.3 in
  • 5 mils
    • 1.5 to 15.0 cm / 0.6 to 6.0 in
  • 7.5 mils
    • 0.8 to 25.0 cm / 0.3 to 10.0 in
  • 10 mils
    • 0.8 to 38.0 cm / 0.3 to 15.0 in
  • 13 mils
    • 1.9 to 45.0 cm / 0.7 to 18.0 in
  • 20 mils
    • 2.5 to 65.0 cm / 1.0 to 26.0 in
Safety & Regulatory
  • Agency Approvals
    • The product meets necessary safety and regulatory approvals for its intended use.
    • The Quick Reference Guide for this product can be referred to for a complete list of certifications.
  • Environmental Compliance
    • Complies to China RoHS
    • Complies to EU RoHS
  • LED Classification
    • IEC 60825-1 Class 1 LED Product
Utilities
  • Datalogic Aladdin
    • Datalogic Aladdin configuration program is available for download at no charge
  • Remote Host Download
    • Lowers service costs and improves operations
      • QD2110
Warranty
  • 5-Year Factory Warranty
