36710 36710 36710 DataLogic
Datalogic Barcode Scanner Datalogic Barcode Scanner Datalogic Barcode Scanner Datalogic Barcode Scanner Datalogic Barcode Scanner

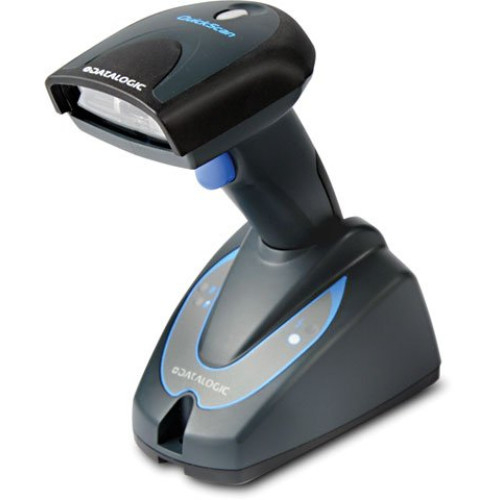

Datalogic Barcode Scanner
Part #: QM2130-BK-910K1 | SKU: DAT36710

The QuickScan I: QM2100 reader features Datalogic's cordless STAR-System, the market's most secure and reliable system for 433/910 MHz narrow band communications. Datalogic's STAR radio system is fast, easy to use and guaranteed Wi-Fi interference free. The Datalogic QuickScan I: QM2100 reader's 40 ft / 12 m radio range capability provides a wide working area eliminating the restraints of cabled devices, making the workplace safer and more efficient. Solid-state electronics ensure superior reliability and durability versus laser devices and provides for fast and snappy reading performance. Standard multi-interface capability provides host connectivity via USB, RS-232, Keyboard Wedge and Wand Emulation. Convenient Plug & Scan kits provide for easy installation and the Scan-While-Charging feature combined with a long lasting user replaceable lithium-Ion battery allows for hands-free reading while simultaneously charging the battery. The Datalogic patented Batch Mode capability allows for the collection of data when out-of-range from the base station.

Datalogic Barcode Scanner

Part Details: Datalogic QuickScan Mobile QM2130 Bar Code Reader - Wireless - Linear
InStock
Need a different version of the Datalogic QuickScan I: QM2100 Barcode Scanner? View all 6 configurations

Additional Information

Color Black
Connectivity Cordless
Form Factor Handheld
Included Cables USB
Manufacturer AIDC DataLogic
Model Name QuickScan I: QM2100
Scanner Capability 1D
Scanner Type CCD, Imager
DataLogic QuickScan I: QM2100 Specs DataLogic QuickScan I: QM2100 Specs (pdf)

Technical Information

  • Scan Pattern: Linear
  • Scan Rate: 235 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 39.37 ft
  • Light Source: LED
  • Image Sensor: Linear
  • Barcode Symbology Supported:
    • 2/5 family
    • EAN/UPC
    • Code 128
    • EAN-128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • MSI
    • Delta Code
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • Code 39 (plus Code 32 Cip 39)
    • GS1 Databar
    • 2/5 family
    • EAN/UPC
    • Code 128
    • EAN-128
    • Code 93
    • Codabar
    • Telepen
    • Plessey
    • Code 49
    • MSI
    • Delta Code
    • Code 11
    • Code 16K
    • ISBN/ISSN
    • ISBT 128
    • Code 39 (plus Code 32 Cip 39)
    • GS1 Databar
  • Maximum Scan Resolution: 4 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: QM2130
  • Product Name: QuickScan Mobile QM2130 Barcode Reader
  • Product Line: QuickScan

Physical Characteristics

  • Color: Black
  • Weight (Approximate): 6.06 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • QuickScan Mobile QM2130 Barcode Reader
    • Base
    • USB Cable
    • QuickScan Mobile QM2130 Barcode Reader
    • Base
    • USB Cable
  • Certifications & Standards:
    • Protection Class:
    • IP30
    • Restriction of Hazardous Substances:
    • EU RoHS
    • LED Safety Class:
    • Class 1 EN 60825-1
  • Additional Information:
    • Supported Interfaces:
    • USBSerialKeyboard WedgeWand Emulation

Battery Information

  • Number of Batteries Supported: 1
  • Battery Chemistry: Lithium Ion (Li-Ion)

Power Description

  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Radio Frequency: Yes
Extended Details
