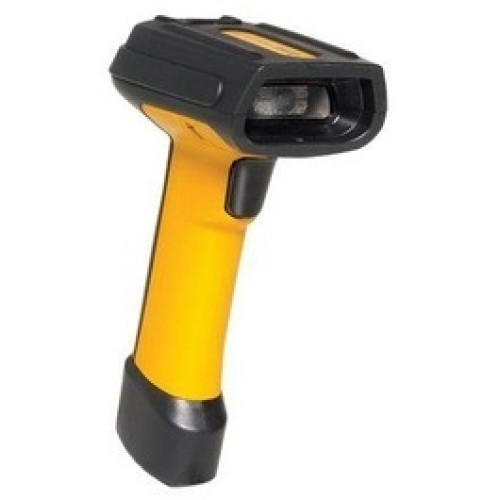

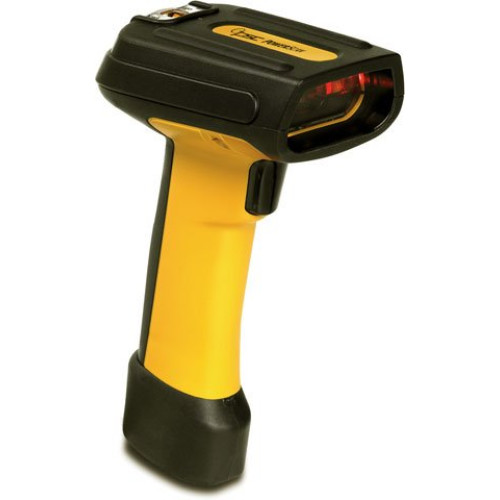

Datalogic Barcode Scanner
Part #: PS72-3100-0300 | SKU: DAT31514

The PowerScan 7000 Standard Range Linear Imaging Scanner (SRI) has been designed from the ground up to be the most rugged, durable and reliable industrial handheld scanner on the market. It is perfect for package handling and tracking, warehouse applications, shipping and receiving, manufacturing shop floor and other demanding applications. The overmold covers all of the likely drop contact points, adding an extra degree of shock protection for the scanner. In fact the scanner can withstand 50 drops of two meters (6.5') to concrete. The scanner is sealed to dust and water at an industry leading IP65 rating. It can operate between -30� C and 50� C. These specifications are not surpassed by any competitive scanner.

Datalogic Barcode Scanner

Part Details: PowerScan 7000 SRI Industrial Strength Imaging Scanner 2D, Keyboard Wedge, High Density and POT Cable #8-0741-16 - Color: Yellow/Black

InStock

Need a different version of the Datalogic PowerScan 7000 Barcode Scanner? View all 14 configurations

Specs & Info

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan 7000
Scanner Capability	1D

DataLogic PowerScan 7000 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Linear
Connectivity Technology: Cable
Light Source: LED
Barcode Symbology Supported:
- Code 11
- Code 128
- UPC/EAN/JAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesas
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- Canadian Post
- British Post
- China Postal Code
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
- Code 11
- Code 128
- UPC/EAN/JAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesas
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- Canadian Post
- British Post
- China Postal Code
- Japanese Post
- Kix
- Planet Code
- OCR-A
- OCR-B
Maximum Scan Resolution: 5 mil
Depth of Field:
- 1.50" - 5.50"@7.50 mil - Linear
- 1.30" - 7.90"@13 mil - UPC
- 1.80" - 5"@6.60 mil - PDF417
- 1.30" - 5"@15 mil - Data Matrix
- 1" - 9"@35 mil - Maxi Code

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: 7000
Product Name: PowerScan 7000 Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 7.5"
Width: 3"
Depth: 4.5"
Color:
- Yellow
- Black
Weight (Approximate): 9.60 oz

Interfaces/Ports

Host Interface: Keyboard Wedge

Other

Certifications & Standards:
- Vibration: Meets MIL-STD-810E
- Water & Dust: IEC529 Rating IP54DW
- Electrical:
- TÜV
- UL
- cUL
- Emissions:
- FCC
- EN 55022-B
- CNS13438
- AS/NZS 3548
- VCCI

Warranty

Limited Warranty: 5 Year

Power Description

Input Voltage: 14 V DC
