Datalogic Barcode Scanner
Part #: PS2D-1100 | SKU: DAT15257

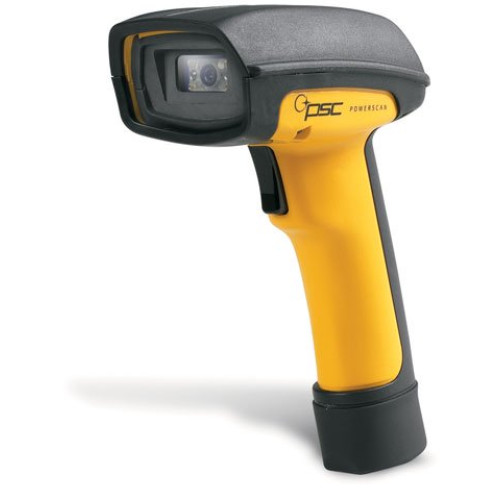

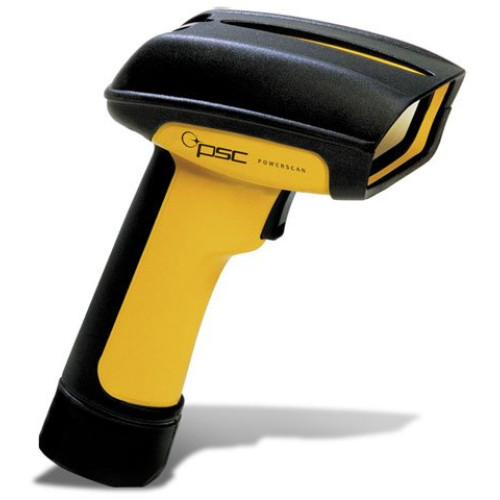

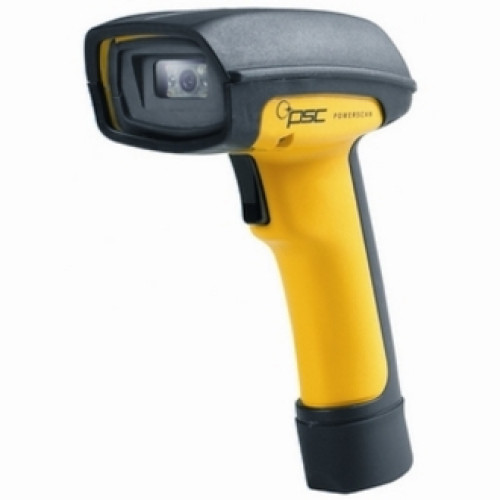

The PowerScan 2D imaging scanner brings the latest imaging technology into the industry leading PowerScan product line. Whether your application requires reading traditional linear barcodes, reading stacked 2D symbologies like PDF417, reading matrix 2D symbologies like Data Matrix and MaxiCode or capturing images like signatures or photographs of other objects, the PowerScan 2D scanner will meet your needs.

Datalogic Barcode Scanner

Part Details: Datalogic PowerScan 2D Bar Code Reader - 1D, 2D - Imager - Serial - Yellow, Black

InStock

Need a different version of the Datalogic PowerScan 2D Barcode Scanner? View all 3 configurations

Specs & Info

Additional Information

Manufacturer AIDC	DataLogic
Model Name	PowerScan 2D
Scanner Capability	1D
Scanner Type	Imager

DataLogic PowerScan 2D Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Symbologies Supported:
- Code 11
- Code 128
- UPC
- JAN
- EAN
- RSS
- Code 39
- Codabar
- Interleaved 2 of 5
- Code 93
- Code 2 of 5
- PDF 417
- MaxiCode
- Aztec Mesa
- Aztec
- Micro PDF
- DataMatrix
- EAN-UCC Composite
- Code 49
- QR Code
- Postnet
- British Post
- Canadian Post
- China Post
- Japanese Post
- Planet Code
- OCR-A
- OCR-B
- Kix
Scanner Type: Imager
Interface Options: RS-232
Input Voltage Range: 4 to 14 V DC
Depth of Field:
- 1.5 - 5.5"@7.5mils - Linear
- 1.3 - 7.9"@13mils - UPC
- 1.8 - 5.0"@6.6mils - PDF417
- 1.3 - 5.0"@15mils - Data Matrix
- 1 - 9"@35mils - Maxi Code

General Information

Manufacturer: PSC Inc.
Product Name: PowerScan 2D Imager Barcode Scanner

Physical Characteristics

Weight: 9.6 oz - Without cable
Color:
- Yellow
- Black

Agency Approvals

Agency Approvals:
- TUV
- UL
- cUL
- FCC
- EN 55022-B
- CNS13438
- AS/NZS 3548
- VCCI

Environmental Conditions

Temperature:
- -10Â°C (14Â°F) to 50Â°C (122Â°F) Operating
- -40Â°C (-40Â°F) to 70Â°C (158Â°F) Storage
Humidity: 5 to 95% Non-condensing

Warranty

Manufacturer Warranty: 3 Year(s)
