Datalogic Barcode Scanner
Part #: PM8500-910RK11 | SKU: DAT233382

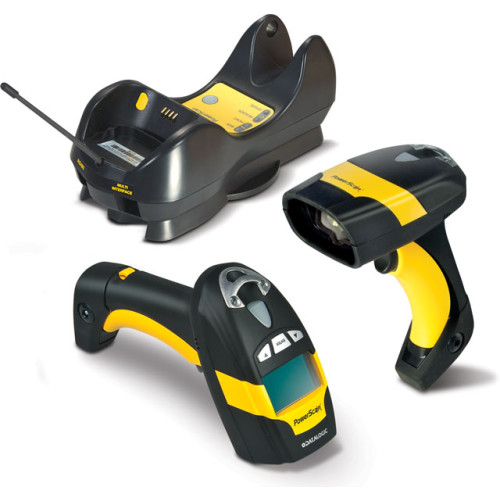

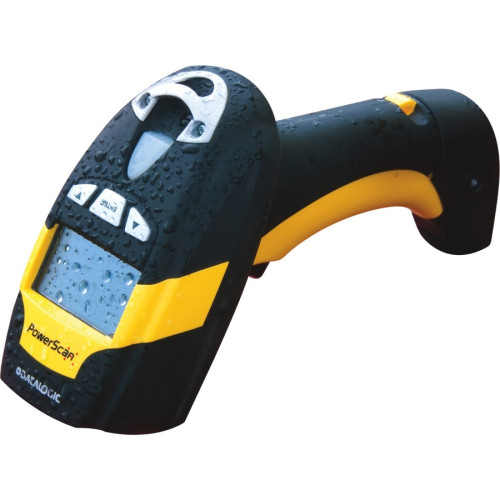

The Datalogic PowerScan PM8500 cordless area imager offers omnidirectional reading of 1D and 2D codes combined with unlimited mobility guaranteed by the Datalogic STAR Cordless System. The PowerScan PM8500 reader's feature a high-resolution Mega-Pixel imaging sensor that is capable of outstanding performance in industrial applications. It is offered in three optic models: Standard Range and High Density models are for typical bar code reading conditions (for medium and high-resolution codes respectively); the Wide Angle model offers a wider field of view allowing the capture of larger and longer codes.

Datalogic Barcode Scanner

Part Details: Datalogic PowerScan PM8500 Handheld Barcode Scanner Kit - Wireless Connectivity - 11.80" Scan Distance - 1D, 2D - LED - Imager - Omni-directional - , Radio Frequency - USB

InStock

Need a different version of the Datalogic PowerScan PM8500 Barcode Scanner? View all 11 configurations

Specs & Info

Additional Information

Form Factor	Handheld
Manufacturer AIDC	DataLogic
Model Name	PowerScan PM8500
Scanner Capability	1D

DataLogic PowerScan PM8500 Specs (pdf)

Technical Information

Barcode Dimension:
- 1D
- 2D
Scan Pattern: Omni-directional
Connectivity Technology: Wireless
Scanning Distance: 11.80"
Light Source: LED
Image Sensor: Imager
Barcode Symbology Supported:
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- 2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Postal Codes:
- Australian Post
- British Post
- Canadian Post
- China Post
- Japanese Post
- KIX Post
- Korea Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- Stacked Codes:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- 2D Codes:
- Aztec Code
- Aztec Mesas
- Data Matrix
- MaxiCode
- QR Code
- Postal Codes:
- Australian Post
- British Post
- Canadian Post
- China Post
- Japanese Post
- KIX Post
- Korea Post
- Planet Code
- Postnet
- Royal Mail Code (RM4SCC)
- Stacked Codes:
- EAN/JAN Composites
- GS1 DataBar Composites
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- MacroPDF
- MicroPDF417
- PDF417
- UPC A/E Composites
Maximum Scan Resolution: 6.60 mil
Depth of Field:
- 2.90" - 6.10"@5 mil
- 3.10" - 7.30"@5 mil - PDF
- 3.10" - 6.50"@7.50 mil - Data Matrix/QR
- 2.10" - 9.70"@10 mil
- 2.70" - 7.70"@10 mil - Data Matrix/QR
- 1.50" - 10"@10 mil - PDF
- 1.90" - 10.60"@13 mil
- 2.10" - 14.40"@20 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: PM8500
Product Name: PowerScan PM8500 Handheld Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 8.1"
Width: 2.7"
Depth: 4.5"
Weight (Approximate): 12.70 oz

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- China RoHS
- RoHS
Package Contents:
- PowerScan PM8500 Handheld Barcode Reader
- Power Supply
- Power Cord with US Plug
- PowerScan PM8500 Handheld Barcode Reader
- Power Supply
- Power Cord with US Plug

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

Limited Warranty: 3 Year

Network & Communication

Radio Frequency: Yes

Extended Details
