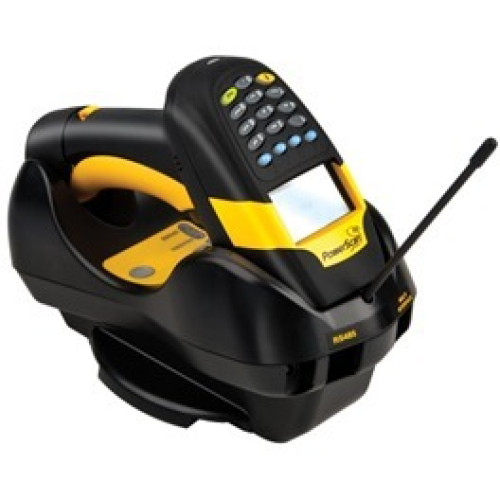

Datalogic Barcode Scanner
Part #: PM8300-DK910RK10 | SKU: DAT73444

The PowerScan PM8300 series includes different models able to satisfy all customers' needs; the PM8300 is the basic cordless model; the PM8300-D intermediate model includes a display and 3-key keypad; and the ultimate PM8300-DK model features a display and a full 16-key keyboard. The PM8300- DK model significantly increases the sophistication of interaction with the host system and opens up new potential uses of the scanner, making it suitable for applications that would normally require a more expensive portable data terminal.

Datalogic Barcode Scanner

Part Details: Datalogic PowerScan PM8300-DK Handheld Barcode Scanner Kit - Wireless Connectivity - 35 scan/s - 39.37" Scan Distance - 1D - Laser - Linear - , Radio Frequency - USB

InStock

Need a different version of the Datalogic PowerScan PM8300 Barcode Scanner? View all 22 configurations

Specs & Info

Additional Information

Color	Yellow
Connectivity	Cordless
Form Factor	Handheld
Included Cables	USB
Interface Options	USB
Manufacturer AIDC	DataLogic
Model Name	PowerScan PM8300
Scanner Capability	1D
Scanner Type	Laser

DataLogic PowerScan PM8300 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Linear
Scan Rate: 35 scan/s
Connectivity Technology: Wireless
Scanning Distance: 39.37"
Light Source: Laser
Barcode Symbology Supported:
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- Stacked Codes:
- Code 16K
- Code 49
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- 1D / Linearcodes:
- Autodiscriminates All Standard 1D Codes Including GS1 DataBar Linearcodes
- Stacked Codes:
- Code 16K
- Code 49
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
Maximum Scan Resolution: 3 mil
Depth of Field:
- 0.80" - 5.20"@5 mil
- 1.40" - 9.50"@7.50 mil
- 1.10" - 16.80"@10 mil
- 0.90" - 21.70"@13 mil
- 2.50" - 30.90"@20 mil
- 1" - 38.50"@40 mil

General Information

Product Type: Handheld Barcode Scanner
Brand Name: Datalogic
Manufacturer: Datalogic S.p.A
Product Model: PM8300-DK
Product Name: PowerScan PM8300-DK Handheld Barcode Reader
Product Line: PowerScan

Physical Characteristics

Height: 8.3"
Width: 2.7"
Depth: 4.5"
Weight (Approximate): 13.90 oz

Interfaces/Ports

Host Interface: USB

Other

Green Compliant: Yes
Green Compliance Certificate/Authority: RoHS
Package Contents:
- PowerScan PM8300-DK Handheld Barcode Reader
- Base Station
- Power Supply Cable
- Power Cord With US Plug
- Removable Battery
- PowerScan PM8300-DK Handheld Barcode Reader
- Base Station
- Power Supply Cable
- Power Cord With US Plug
- Removable Battery

Battery Information

Battery Chemistry: Lithium Ion (Li-Ion)

Warranty

Limited Warranty: 3 Year

Network & Communication

Radio Frequency: Yes

Extended Details
