32039 32039 32039 DataLogic
Datalogic Barcode Scanner Datalogic Barcode Scanner Datalogic Barcode Scanner

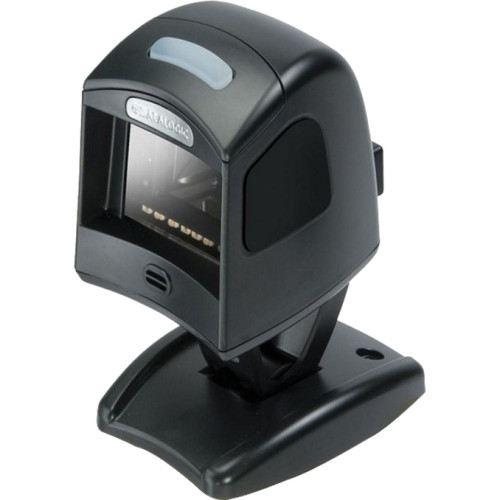

Datalogic Barcode Scanner
Part #: MG10-6031-001-302 | SKU: DAT32039

The Magellan 1000i is designed for small-counter retail environments incorporates several new design wins for the user. Our design objectives were simple: improve checkout productivity while protecting the customer's investment by adding capabilities that would extend the typical life of the scanner. We developed a new bar code scanner that is faster at capturing of hard-to-read labels, has outstanding ergonomics especially when handheld use is required, and has an excellent price to value ratio. The Magellan 1000i will also be very effective at protecting the user's investment by potentially extending the useful life of the scanner. Datalogic's new imaging technology has no moving parts providing excellent reliability and durability. This new technology also has a significant software component that will make adding new features and enhancements much easier. Features such as RFID coupling and new code symbologies can be enabled via software changes. And, like the entire Magellan family, the Magellan 1000i has multi-interface support built into each scanner that allows a new interface with a simple program parameter change and a cable switch.

Datalogic Barcode Scanner

Part Details: Datalogic Magellan 1000i Bar Code Reader - Cable Connectivity - 1D, 2D - LED - Imager - Omni-directional - IBM 46XX, Serial - Black
InStock
Need a different version of the Datalogic Magellan 1000i Barcode Scanner? View all 22 configurations

Additional Information

Manufacturer AIDC DataLogic
Model Name Magellan 1000i
Scanner Capability 1D
DataLogic Magellan 1000i Specs DataLogic Magellan 1000i Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Cable
  • Light Source: LED
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Dual Barcodes for Japan (2 label read)
    • Reduced Space Symbology (RSS) RSS-14,RSS expanded and RSS Stacked Omni-directional)
    • EAN 8 & 13 with full expansion 8 to 13
    • JAN 8 & 13 with full expansion 8 to 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
    • UPC Versions A&E
    • UPC Supplementals (Bookland & Coupon Code)
    • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
    • Dual Barcodes for Japan (2 label read)
    • Reduced Space Symbology (RSS) RSS-14,RSS expanded and RSS Stacked Omni-directional)
    • EAN 8 & 13 with full expansion 8 to 13
    • JAN 8 & 13 with full expansion 8 to 13
    • EAN/JAN two label
    • UCC/EAN 128
    • Italian Pharmacode
    • Supports GTIN
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 0.50" - 1.80"@5 mil
    • 0.25" - 2.25"@7.50 mil
    • 0 mil - 5"@10 mil
    • 0 mil - 6"@13 mil - UPC
    • 0 mil - 6.70"@20 mil

General Information

  • Product Type: Desktop Barcode Scanner
  • Brand Name: Datalogic
  • Manufacturer: Datalogic S.p.A
  • Product Model: 1000i
  • Product Name: Magellan 1000i Barcode Reader
  • Product Line: Magellan

Physical Characteristics

  • Height: 3.3"
  • Width: 2.8"
  • Depth: 3.7"
  • Color: Black
  • Weight (Approximate): 13.60 oz

Interfaces/Ports

  • Host Interface:
    • IBM 46XX
    • Serial

Other

  • Package Contents:
    • Magellan 1000i Barcode Reader
    • Tilting Riser Stand
    • Fixed Mounting Plate
    • Magellan 1000i Barcode Reader
    • Tilting Riser Stand
    • Fixed Mounting Plate
  • Additional Information:
    • Pitch Angle 65
    • Skew angle 75

Warranty

  • Limited Warranty: 2 Year
Extended Details

Recommended Accessories for Model: Datalogic Barcode Scanner

  • DataLogic Accessory
    Part #: 11-0114 | SKU: DAT20274

    3" riser stand w/tilt adjustment & fixed mounting holes,black

  • DataLogic Accessory
    Part #: 8-0736-02 | SKU: DAT26892

    8' coiled DB25 RS232 cable. Requires external power supply, not included.

  • Datalogic Magellan 1000i Accessory
    Part #: 8-0429-02 | SKU: DAT20280

    Datalogic Coiled POT Cable - 12ft

  • Datalogic Magellan 1000i Accessory
    Part #: 8-0423-02 | SKU: DAT20281

    Datalogic RS-232 Cable - Female - 12ft
