| Manufacturer AIDC | DataLogic |
|---|---|
| Model Name | Gryphon I GD4100 |
| Scanner Capability | 1D |
| Scanner Type | Imager |

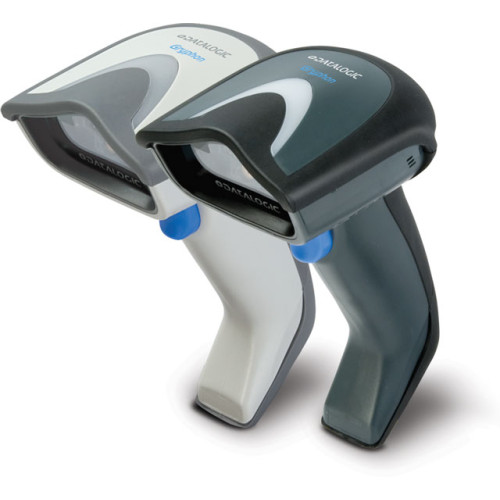

DataLogic Gryphon I GD4100 Specs
Decoding Capability
- 1D / Linear codes
- Autodiscriminates all standard 1D codes including GS1 DataBar linear codes
- Stacked Codes
- GS1 DataBar Expanded Stacked
- GS1 DataBar Stacked
- GS1 DataBar Stacked Omnidirectional
- Current
- Operating (Typical)
- GD4110
225 mA @ 5 VDC - GD4130
245 mA @ 5 VDC
- GD4110
- Standby/Idle (Typical)
- 120 mA @ 5 VDC
- Operating (Typical)
- Input Voltage
- GD4110
4.5 - 14.0 VDC - GD4130
4.75 - 5.25 VDC
- GD4110
- Ambient Light
- 0 - 100,000 lux
- Drop Resistance
- Withstands repeated drops from 1.8 m / 5.9 ft onto a concrete surface
- ESD Protection (Air Discharge)
- 16 kV
- Humidity (Non-Condensing)
- 0 - 90%
- Particulate and Water Sealing
- IP42
- Temperature
- Operating
- 0 to 55 ?C / 32 to 131 ?F
- Storage/Transport
- -20 to 70 ?C / -4 to 158 ?F
- Operating
- RS-232 / IBM 46XX / USB Multi-Interface
- RS-232 / USB / Keyboard Wedge / Wand Multi-Interface
- Colors Available
- Black
- White
- Dimensions
- 18.1 x 7.1 x 10.0 cm / 7.1 x 2.8 x 3.9 in
- Weight
- 169.0 g / 6.0 oz
- Imager Sensor
- CCD Solid-State
- Light Source
- Illumination
- Dual LED Array 630 - 670 nm
- Illumination
- Print Contrast Ratio (Minimum)
- 15%
- Read Rate (Maximum)
- 325 reads/sec.
- Reading Angle
- Pitch
- 65?
- Roll (Tilt)
- 35?
- Skew (Yaw)
- 65?
- Pitch
- Reading Indicators
- Beeper (Adjustable Tone and Volume)
- Datalogic 'Green Spot' Good Read Feedback
- Good Read LED
- Resolution (Maximum)
- 0.076 mm / 3 mils
- Minimum distance determined by symbol length and scan angle.
- Printing resolution, contrast, and ambient light dependent.
- 5 mils
- 6.0 to 18.0 cm / 2.3 to 7.0 in
- 7.5 mils
- 3.5 to 30.0 cm / 1.4 to 11.7 in
- 10 mils
- 2.0 to 45.0 cm / 0.8 to 17.7 in
- 13 mils
- 3.0 to 60.0 cm / 1.2 to 23.4 in
- 20 mils
- 3.0 to 80.0 cm / 1.2 to 31.2 in
- Agency Approvals
- The product meets necessary safety and regulatory approvals for its intended use.
- The Quick Reference Guide for this product can be referred to for a complete list of certifications.
- Environmental Compliance
- Complies to China RoHS
- Complies to EU RoHS
- LED Classification
- IEC 60825-1 Class 1 LED Product
- Datalogic Aladdin
- Datalogic Aladdin configuration program is available for download at no charge
- OPOS / JavaPOS
- JavaPOS Utilities are available for download at no charge
- OPOS Utilities are available for download at no charge
- Remote Host Download
- Lowers service costs and improves operations
- GD4110
- Lowers service costs and improves operations
- 5-Year Factory Warranty
