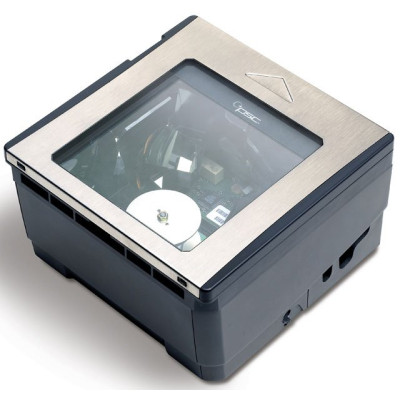

Datalogic Magellan 2300HS Barcode Scanner

Datalogic Magellan 2300HS Barcode Scanner

The Magellan 2300HS horizontal scanner was designed using Magellan 8000 series technology to specifically optimize performance for medium to high throughput horizontal applications in grocery, drug, department and general retail environments. Unlike competitive horizontal scanners, the Magellan 2300HS offers category leading scanning performance, unique value added software features like Productivity Index Reporting, and our advanced FirstStrike decoding software. And because it's based on the Magellan platform, it does so much more.
Discontinued - Need Assistance
See all options
  • Host diagnostic reporting
  • Optional RSS decoding capability
  • Optional EAS functionality
  • Flash memory for easy software upgrades
  • Optional Productivity Index Reporting software
  • Powered auxiliary RS-232 port for easy integration of a handheld scanner
  • Aggressive horizontal scan volume
  • FirstStrike advanced decoding software
  • Multiple interface solution supports all popular host interfaces

Mechanical

Length

  • 6.0ā€ / 15.2 cm
Width
  • 6.0ā€ / 15.2 cm
Depth
  • 3.83ā€ / 9.7 cm
Weight
  • 2.5 lbs. / 1.1 kg

Optical

Scan lines

  • 18
Rate
  • 6,000 RPM
Scan Lines/Sec.
  • 1,800
Depth-of-field
  • 6.0ā€ / 15.3 cm

Environmental

Temperature rating

  • Operating: 50Ā° to 104Ā° F / 10Ā° to 40Ā° C
  • Storage/transport: -40Ā° to 158Ā° F / -40Ā° to 70Ā° C

Humidity

  • Operating: 5 to 95% NC
  • Storage/transport: 5 to 95% NC

Electrical

AC Power requirements

  • 90-265 VAC, 47-63 Hz
  • 4.0 Watts (nominal), 9.6 Watts (maximum), 2.5 Watts (sleep mode)

Decoding Capability

The Magellan 2300HS autodiscriminates between all of the following supported symbologies

  • UPC Versions A&E
  • UPC Supplementals (Bookland & Coupon Code)
  • UPC Add-ons (sub 2 or P2, sub 5 or P5 & C128)
  • Reduced Space Symbology (RSS-14 expanded and stacked)
  • EAN 8, 13
  • JAN 8, 13
  • EAN/JAN two label
  • UCC/EAN 128
  • Code 39 (with full ASCII)
  • Code 128
  • Code 93
  • I 2 of 5
  • Standard 2 of 5
  • Italian Pharmacode
  • Codabar/NW7
  • MSI/Plessey

Communications

Host

  • RS232, IBM 46XX, IBM USB, USB Keyboard

Other

  • Powered RS232 auxiliary port

Safety and Regulatory

Electrical

  • EN60 950 (TƜV Europe)
  • PSE-Mark (Japan); UL 60950 (USA)
  • CSA 60950 (Canada)

Emissions

  • CISPR22-B (World)
  • FCC part 15 Class B (USA)
  • VCCI-B (Japan)
  • EN 55022-B (Europe)
  • NOM (Mexico)

Laser Safety

  • CDRH Class IIa (USA/Canada)
  • EN 60825-1 Class 1(Europe)
  • IEC 60825-1 Class 1 (World) (CAUTION: Laser Radiation ā€“ do not stare into beam)
  • IEC 60825 Class 1 (Europe)

Other

EAS compatibility

  • Integrated EAS hardware will work with Counterpoint IV, V, VI and VII models available from CheckpointĀ® Systems
  • Good read acknowledgement with SensormaticĀ®
Extended Details
Refine Your Options
Shop By
Shopping Options
Included Features
  1. Embedded Scale (1)
Form Factor
  1. In Counter (2)
Scanner Capability
  1. 1D (14)
Scanner Type
  1. Laser (1)
Color
  1. Gray (1)
Embedded Scale
  1. Embedded Scale (1)
Glass Type
  1. Sapphire (1)
  1. Datalogic Barcode Scanner
    Part #: M230B-00111-01000R | SKU: DAT240685

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D - Serial
  2. Datalogic Barcode Scanner
    Part #: M231B-00501-04030R | SKU: DAT240746

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D - Serial
  3. Datalogic Barcode Scanner
    Part #: M231B-00101-02301R | SKU: DAT240737

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D - Serial
  4. Datalogic Barcode Scanner
    Part #: M230D-00101-06040R | SKU: DAT240732

    Datalogic Magellan 2300HS In-Counter Bar Code Reader - Cable Connectivity - 5.98" Scan Distance - Laser - Imager - Omni-directional - USB - Black
  5. Datalogic Barcode Scanner
    Part #: M230B-00121-06040R | SKU: DAT240698

    Datalogic Magellan 2300HS In-Counter Bar Code Reader - Cable Connectivity - 6" Scan Distance
  6. Datalogic Barcode Scanner
    Part #: M230B-00500-00000R | SKU: DAT240715

    Datalogic Magellan 2300HS In-Counter Bar Code Reader - Cable Connectivity - 5.98" Scan Distance - USB, Serial, IBM 46XX, Keyboard Wedge
  7. Datalogic Barcode Scanner
    Part #: M230B-00521-01040R | SKU: DAT240724

    Magellan 2300HS, ENHANCED, DLS COLORS & LOGO with O Standard EAS, LLT TOP, NO CD, USB/Keyboard wedge CONFIG, EURO Power SUPPLY, Standard COUNTER MNT, RS-232 CABLE, PC D-Sub, 9P
  8. Datalogic Barcode Scanner
    Part #: M230B-00102-03080R | SKU: DAT240683

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D - Serial
  9. Datalogic Barcode Scanner
    Part #: M231B-00502-00000R | SKU: DAT240748

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D - Serial
  10. Datalogic Barcode Scanner
    Part #: M232B-00101-02000R | SKU: DAT240770

    Datalogic Magellan 2300HS In-counter Barcode Scanner - Cable Connectivity - 1D

Items 1 to 10 of 30 total

Page:
  1. 1
  2. 2
  3. 3

Recommended Accessories for Model: Datalogic Magellan 2300HS Barcode Scanner

  • Datalogic Accessory
    Part #: CAB-461 | SKU: DAT67384

    Cable - Datalogic PowerScan 9501 Retail Series - RS-232 - RJ10 Magellan Bi-Optic AUX Port - Coiled - 3.6 Meters - CAB-461 - 12 Foot.
    MSRP: $58.00 Price: $48.33
    In Stock
  • Datalogic Accessory
    Part #: 11-0178 | SKU: DAT48325

    Mount - Counter - HS1250 Fill - Magellan 2300HS/3300HSi/3550HSi
    MSRP: $87.00 Price: $70.61
  • Datalogic Accessory
    Part #: 11-0027 | SKU: DAT16159

    Mount - Counter - Standard - Magellan 2300HS/3300HSi/3550HSi
    MSRP: $66.00 Price: $53.57
  • Datalogic Accessory
    Part #: 963785 | SKU: DAT48323

    Part (DLC Top) for the Magellan 2300HS
  • Datalogic Accessory
    Part #: 964150 | SKU: DAT60360

    Part (Tin Oxide Top, DLS) for MGL2300 HS
