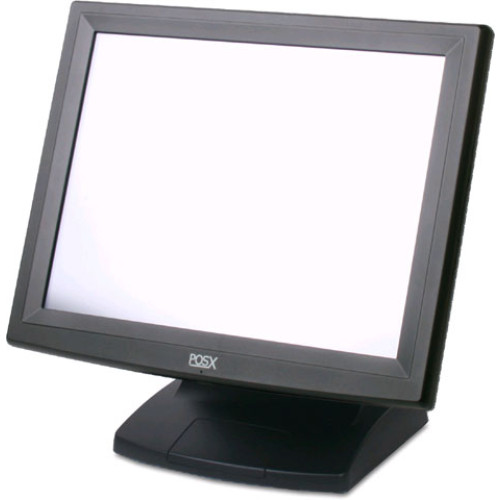

Custom America EVO TouchPC POS Touch Terminal

PC SPECIFICATIONS:

CPU: Intel Atom 1.67 GHZ.
HARD DRIVE: 80 GB
Memory: 1 ~ 2GB DDR II RAM
I/O PORTS: 4 x USB 2.0; 1 x RJ45; 4 x RJ45 Serial
Additional: VGA output.
LAN: Onboard 10/100/1000Mbps Ethernet
Video: Integrated Intel GMA 950 Graphics Engine 224 MB Shared Video

DISPLAY:

LCD PANEL: 15" TFT LCD Active Matrix display
RESOLUTION: 1024 x 768 pixel, 16.7M colors
DISPLAY MODE: SVGA 800 x 600, XGA 1024 x 768
SCAN RATE: 30 - 60 KHz (horizontal); 56 - 75 KHz (vertical)

TOUCH SPECIFICATIONS:

TECHNOLOGY: 5-Wire Resistive
INTERFACE: USB

POWER:

POWER SUPPLY: 64 w 19 V 3.4 A

ENVIRONMENTAL:

OPERATING TEMPERATURE: 41? F to 95? F
OPERATING HUMIDITY: 20%-80% non-condensing

PHYSICAL:

WEIGHT: 12.13 lbs
DIMENSIONS: 14.37" (W) x 10.94" (D) x 11.69" (H)br> COLOR: black
STAND STYLE: Cable Management Base
MOUNTING OPTIONS: desktop placement, bolt down & VESA 75mm mountable
MONITOR TILTING ANGLE: 90?

SAFETY & REGULATORY APPROVALS

RoHs, FCC Class A, CE, LVD

WARRANTY:

3 year standard
