| Manufacturer AIDC | Cisco |
|---|---|
| Model Name | Parts |
General Information
- Product Type: Switch Chassis
- Product Series: 6880-X
- Brand Name: Cisco
- Manufacturer: Cisco Systems, Inc

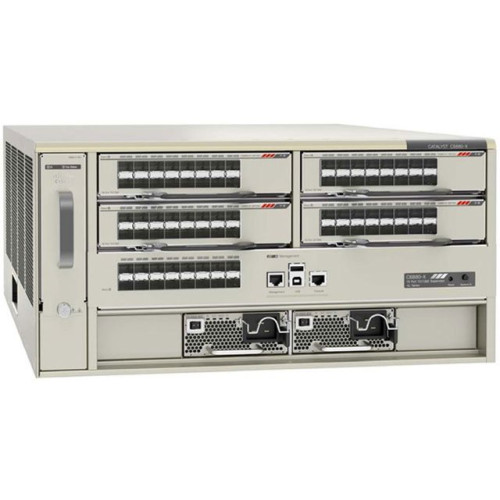

- Product Name: Catalyst 6880-X-Chassis (Standard Tables)
- Product Line: Catalyst
Physical Characteristics
- Height: 8.5"
- Width: 17.4"
- Depth: 23"
- Form Factor:
- Rack-mountable
- Desktop
Interfaces/Ports
- Port/Expansion Slot Details: 16 x 10 Gigabit Ethernet Expansion Slot
- Token Ring Port: No
- LRE Port: No
- USB: Yes
- Management Port: Yes
- Bypass: No
Other
- Certifications & Standards:
- Safety:
- UL 60950 Second Edition
- CAN/CSA-C22.2 No. 60950 Second Edition
- EN 60950 Second Edition
- IEC 60950 Second Edition
- AS/NZS 60950
- EMC:
- FCC Part 15 (CFR 47) Class A
- VCCI Class A
- EN55022 Class A
- CISPR 22 Class A
- CE marking
- AS/NZS 3548 Class A
- ETS300 386
- EN55024
- EN61000-6-1
- EN50082-1
- NEBS/ETSI:
- GR-1089-Core NEBS Level 3
- ETS 300 019 Storage Class 1.1
- ETS 300 019 Transportation Class 2.3
- ETS 300 019 Stationary Use Class 3.1
Management & Protocols
- Manageable: Yes
- Management:
- MIB
- RMON
- VLAN
- QoS
- uFlow
Power Description
- PoE (RJ-45) Port: No
- Input Voltage:
- 110 V AC
- 220 V AC
- Redundant Power Supply: Yes
- Power Source: Power Supply
I/O Expansions
- Number of Total Expansion Slots: 20
- Expansion Slot Type:
- SFP+
- Port Card
- Number of SFP+ Slots: 16
Media & Performance
- Ethernet Technology: 10 Gigabit Ethernet
- Network Technology: 10GBase-X
Network & Communication
- Layer Supported: 3
Warranty
- Limited Warranty: 1 Year
Memory
- Standard Memory: 2 GB
