RFID Equipment

The FEIG ID ISC.M02.M8-B is designed as a reader module for contactless data exchange with passive ISO 15693 transponders. The ID ISC.M02.M8-B module has an integrated antenna multiplexer for the connection of up to 8 external antennas. The ID ISC.M02.M8-B reader module also reads RSSI data for localization of identified transponders. The ID ISC.M02.M8-B is suitable for all applications where short read ranges with only a small reader size are required, such as for integration into medical devices.

The FEIG HF Mid Range Reader ID MRM102 identifies transponders according to ISO 15693 with an operating frequency of 13.56 MHz. The ID MRM102 reader is suitable for applications with middle read ranges. Depending on the used antenna the ID MRM102 has a read range up to 40 cm. With its anti-collision function the ID MR102 is able to read up to 30 transponders simultaneously. Due to its numerous communication interfaces the HF Mid Range Reader ID MRM102 is suitable for multiple applications like identification of files and documents, identification of rented goods, libraries and is easy to integrate in existing systems.

The FEIG UHF Short Range ID MU02.02 Reader-Module consists of just a small single PCB and convinces with excellent performance. Low power consumption makes the ID MU02.02 perfect for applications such as integration into handhelds and printers, integration into access control terminals, use as desktop reader after integration into an appropriate housing. The ID MU02.02 UHF Short Range Reader module provides 2 switchable antenna outputs for various applications.

The FEIG RW01-A has been especially designed for applications such as personal identification, access control and time recording. ID RW01-A can be easily adapted to the respective application by a software configuration. The RW01-A Multi-tag reader is equipped with a RS232 (V24) interface and a Data / Clock interface, which can be operated in Wiegand- or Magnetic Card emulation.

The FEIG ID RW02.10-AD / -B is designed as a wall-mounted device for contactless data exchange with common 125 kHz transponders for applications like access control and time attendance. The RW02.10-AD/-B''s indoor and outdoor suitability make it the perfect solution for applications such as access control, time attendance, charging systems, and many more. The ID RW02.10-AD / -B data exchange with a computer or other equipment is carried out via a serial (RS232 or RS485) or a Data / Clock interface (Wiegand).

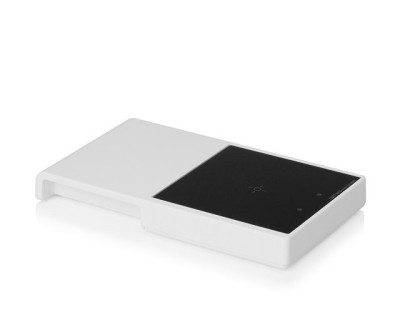

The FEIG ID RW40.30-USB is designed as a desktop device for contactless data exchange with common 125 kHz transponders. Power supply and data exchange with a computer or other equipment is carried out via the ID RW40.30-USB''s USB interface. The ID RW40.30-USB is best suitable for various office, administration, and industrial applications.

The FEIG ID RWA02 is designed as a wall-mounted device for contactless data exchange with common 125 kHz transponders. The ID RWA02 is suitable for indoor and outdoor use and has an IP54 protective rating. The ID RWA02 is best suited for applications such as access control, time attendance and payment systems.

The FEIG ID RWA02.10 is designed as a wall-mounted device for contactless data exchange with common 125 kHz transponders. The ID RWA02.10 is suitable for indoor and outdoor use and has an IP54 protective rating. The ID RWA02.10 is best suited for applications such as access control, time attendance and payment systems.

The FEIG ID SPAD102 is designed as very flat and shielded antenna for contactless data exchange with common HF transponders. The ID SPAD102 features an integrated HF reader. The ID SPAD102 impresses with its outstanding performance and modern design. The ID SPAD102''s read range with single transponders could reach more than 30 cm. Due to its integrated shielding, transponders will be detected only inside the antenna area and interferences between several antennas will be minimized. Additionally installation on metallic or conductive surfaces has no influence on the ID SPAD102, giving you more installation flexibility. The ID SPAD102 is best suitable for desktop applications in offices and libraries to trace files or documents and to detect lendable items at the check out or return point.

The FEIG ID ISC.PRH200 is a compact, wireless handheld reader, designed for contactless data exchange with ISO 15693 transponders, especially in libraries. Depending on the type of media and the reading distance, the ID ISC.PRH200''s output power can be switched between Standard and Boost Modes. The ID ISC.PRH200 makes relevant states visible through its 5 multi-colored LED lights and an integrated sounder. Communication with a data base or computer is through a Wi-Fi interface on the ID ISC.PRH200, which supports the most common encryption protocols. The ID ISC.PRH200''s power supply is a Lithium Ion rechargeable battery that allows operating times up to 16 hours.
