Axicon Verifier

A range of reporting tools come as standard for the Axicon In-Line Verifier including the ability to save the scan file of each and every bar code, or just those that fail; a spread sheet of the results and a summary of every print-run. Easy to use tools providing full auditable traceability - an integral part of any ISO9000 Quality Management system.

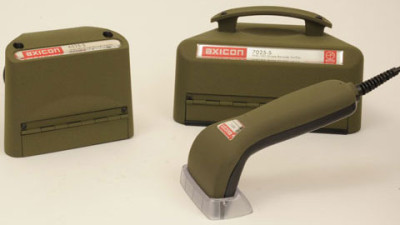

Choose the Axicon 6025-S if you need to verify mainly the smaller, very commonly used bar codes like EAN-13 and UPC-A but also code 39, code128 and ITF. As long as the width of the codes and light margin on either side do not exceed a width of 68mm

The Axicon Laetus application works in conjunction with our standard verification read heads, where two options are available. Using a standard Axicon 6000 series or using a dedicated white light verifier, the Axicon Laetus, which has the same specifications but a different light wavelength that allows scanning Laetus pharmacodes with light coloured bars. Please note that the Axicon Laetus cannot be used as an ISO verifier because of its white light.

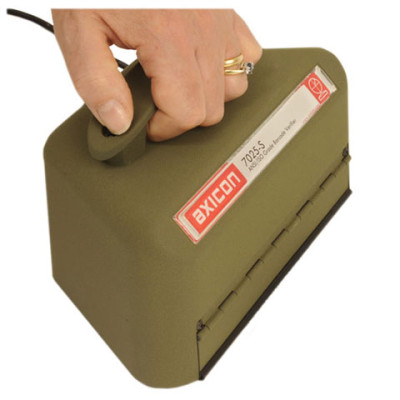

As an extension to the range of very popular 7000 seies verifiers, Axicon now offer these with a choice of IP (Industrial Protection) ratings. The 7025-S-IP is designed for all barcodes where a 10 or 20mil aperture is mandatory (such as UCC/EAN-128 and ITF-14), up to 7.68" (195 mm) width including quiet zones. The simple to use design reduces user error and eliminates product damage while providing the highest level of accuracy achievable for verification. The "S" range of Axicon verifiers have a "Continuous Scan" feature.

The Axicon 15500 barcode verifier is designed to read both linear and two dimensional matrix barcodes simultaneously. All the symbols seen in its field of view are verified individually, and the user simply selects each barcode in turn to see the specific results.

NIST Traceable Calibration Card - Single Card suitable for all Axicon verifiers
