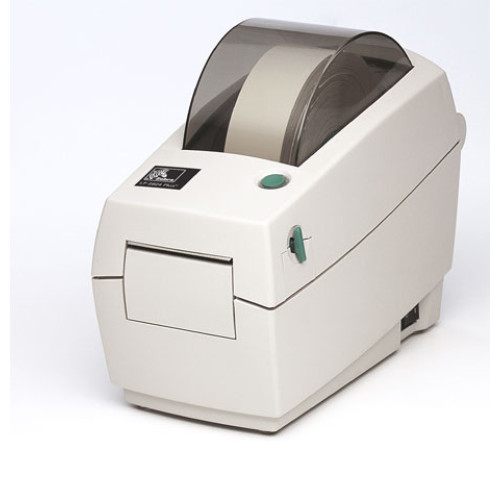

Zebra 2824-Z Barcode Label Printer

The Zebra 2824-Z is available in both Direct Thermal (LP2824-Z) and Thermal Transfer (TLP2824-Z) versions. With one of the smallest footprints of any two-inch desktop printer in the industry, this easy-to-use direct thermal 2824-Z fits into places other printers cannot, without sacrificing speed, print quality or media capacity. This space conservation is great for the typically congested areas around cash registers, desks, and countertops. The Zebra 2824-Z integrates easily into a variety of mid- to low-volume printing applications including: Shipping/Receiving, Warehouse shelf labeling and inventory control, Retail product marking, and coupon/receipt printing, Transportation and Logistics.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Zebra 2824-Z Specs (pdf)

Zebra 2824-Z Driver (download)

Standard Features

Print methods: Direct thermal or direct thermal/thermal transfer
Construction: ABS double-walled casing
OpenACCESS design
32 bit RISC processor
Resident scalable font
Head-up sensor

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

Standard: 8 MB SDRAM (4 MB available to user); 4 MB Flash (2.75 available to user)
Optional: 8 MB Flash with real time clock (12 MB total)

Print width: 2.2" (56 mm)

Print length: 39" (991 mm)

Print speed: 4" (102 mm)/sec

Media sensors: Reflective
Transmissive

Media Characteristics

Maximum label and liner width: 2.36" (59.9 mm)

Minimum label and liner width: 1.00" (25.4mm)

Maximum label and liner length: 39" (991 mm)

Maximum label and liner length (optional): N/A no SDRAM optional memory

Maximum roll diameter: 5" (127 mm)

Core diameter: 1.0" (25.4 mm) and 1.5" (38 mm)

Media thickness: 0.003" (.075 mm) to 0.007" (0.18 mm)

Media types: fanfold, roll-fed, continuous, die-cut, tag stock, continuous receipt, linerless, black bar, black mark, gap, notch, optional linerless platen, receipt

Ribbon Characteristics

Outside diameter: 1.36" (35 mm)

Standard length: 244' (74 m)

Ratio: 1:1

Ribbon width

Recommended to be at least as wide as media
1.33" (33.8 mm) to 2.24" (58 mm)

ID Core: 0.5" (12.7 mm)

Operating Characteristics

Operating temperature: TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 10-90% non-condensing

Storage humidity: 5-95% non-condensing

Electrical: Auto-detectable (PFC compliant) 100-240 VAC, 50-60 Hz

Agency approvals

FCC
VCCI/PSE
C-TICK
UL
NOM
CE
CCC/SRRC
IEC
IRAM
AAMI

Physical Characteristics

Width: 5.5" (140 mm)

Height: 7.0" (178 mm)

Depth: 9.5" (241 mm)

Weight: 3.5 lbs (1.6 kg)

Shipping weight: 6.1 lbs (2.8 kg)

Orientation: Center

Programming Languages

Core programming languages: ZPL, ZPL II

Barcodes/Symbologies

Linear: Code 11
Code 39
Code 93
Code 128
EAN-13
EAN-8
UPC-A
UPC-E
Plessey
Postnet
Industrial 2-of-5
Interleaved 2-of-5
Logmars
MSI
Codabar
RSS-14 (limited, truncated, stacked)
UPC-A and UPC-E with EAN 2 or 5 digit extensions

2-dimensional: PDF417
MicroPDF417
Code 49
MaxiCode
Codablock
Data Matrix
QR Code
RSS

Fonts and Graphics

Standard Fonts: 16 bitmapped, 1 smooth scalable (CG Triumvirate Bold Condensed)
Supports user-defined fonts and graphics - including custom logos
IBM Code Page 850 International Characters

Extended Details

Refine Your Options

Zebra Barcode Label Printer
Part #: 282Z-11100-0001 | SKU: ZEB20144

Zebra TLP 2824-Z Thermal Label Printer - 203 dpi - USB, Serial
Zebra Barcode Label Printer
Part #: 282Z-11101-0001 | SKU: ZEB20145

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - USB, Serial
Zebra Barcode Label Printer
Part #: 282Z-11200-0001 | SKU: ZEB20146

Zebra TLP 2824-Z Thermal Label Printer - 203 dpi - Parallel
Zebra Barcode Label Printer
Part #: 282Z-11400-0001 | SKU: ZEB20148

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Serial
Zebra Barcode Label Printer
Part #: 282Z-21100-0001 | SKU: ZEB20164

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - USB, Serial
Zebra Barcode Label Printer
Part #: 282Z-21200-0001 | SKU: ZEB20166

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Parallel
Zebra Barcode Label Printer
Part #: 282Z-21201-0001 | SKU: ZEB20167

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Parallel
Zebra Barcode Label Printer
Part #: 282Z-21400-0001 | SKU: ZEB20168

Zebra LP 2824-Z Thermal Label Printer - 203 dpi - Serial
Zebra Barcode Label Printer
Part #: 282Z-21202-0041 | SKU: ZEB29745

LP 2824-Z, Direct thermal printing, 203 dpi, 2.25" max print width, Parallel Interface, Cutter, Real-time clock, and US power cord. Cables sold separately.
Zebra Barcode Label Printer
Part #: 282Z-11102-0001 | SKU: ZEB76903

Zebra TLP2824Z Thermal Label Printer - USB, Serial
