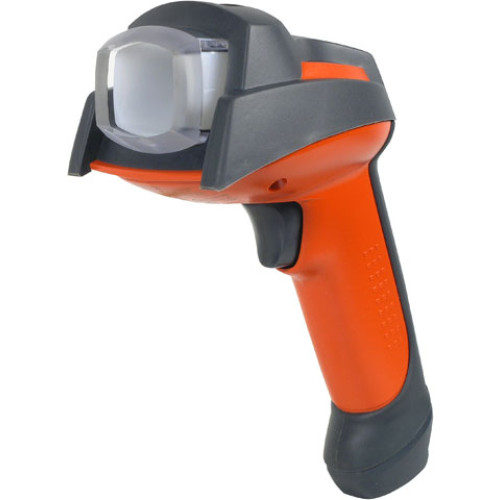

Hand Held DPM 6300 Barcode Scanner

DPM identification for part traceability demands rugged, self-contained readers that perform consistently on all types of codes and parts. The 6300 Series Direct Part Mark (DPM) Readers from Handheld Products are the only solutions in the industry that read everything from the most challenging DPM codes to the easiest printed barcodes. The 6300 Series includes the 6300 corded and 6320 cordless models both powered by Adaptus Imaging Technology 5.0 the world's leading technology brand for image-based barcode reading. The Adaptus Imaging 5.0 platform allows the 6300 DPM readers to optimally illuminate marks of any type, on any surface. Outstanding ergonomics, durability and reading performance combine to make these readers the clear choice for customers who demand best-in-class performance from their DPM solutions.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Hand Held DPM 6300 Specs (pdf)

Lighting/Optics Performance

Illumination:Integrated diffuser; bright- and dark-field LEDs
Aiming:Horizontal green light bar aimed at the center field of view
Reading Direction:Omni-directional, pitch and skew (off-axis) angles up to 34 degrees
Working Range:

	5 mil(.013cm)	10 mil (.025cm)	15 mil ( .038cm)	20 mil (.050cm)
Near	0 in. (0cm)	0 in. (0cm)	0 in. (0cm)	0 in. (0cm)
Far	1.4 in. (3.5cm)	2.1 in. (5.0cm)	3.3 in. (6.5cm)	3.75 in. (8.5cm)

Mechanical/Electrical

Dimensions
Length:3.3 in. (8.4cm)
Height:6.9 in. (17.5cm)
Width:5.3 in. (13.4cm)
Weight:Model 6308: 9.5 oz. (270 g)
Model 6328 with Battery: 11.6 oz. (330 g) Base Station: 8.8 oz. (250 g)

Power

Electrical Requirements:Model 6308: 5 VDC
Model 6328: 9 VDC
Battery (6328):Eight hours normal use fully charged at 77oF (25oC)


Sensor:1280 x 960 high-resolution pixel array
Data Input/Output
Trigger:Via trigger switch in the handle or via PC Software (presentation mode)
Additional Outputs:Multifunctional LED and beeper to indicate good read, device status, or errors

Interfaces

Model 6308:USB and/or RS-232 for data communication, set-up, and image review. PS2 keyboard wedge, PS2 or USB keyboard emulation
Model 6328:Reader to base station: Bluetooth (Class 2) 33 ft. (10m) range
Base station to PC: USB/RS-232/PS2

Environmental

Temperature
Operating:Model 6308: 14oF to +122oF (-10oC to +50oC) Model 6328: 32oF to +122oF (0oC to +50oC)
Storage:Model 6308: -40oF to +158oF (-40oC to +70oC) Model 6328: -40oF to +140oF (-40oC to +60oC)
Humidity:0 to 95%, non-condensing
Sealing:Reader IP54 Base Station IP41
Mechanical Shock:Model 6308: Operational after 50 drops from 6.5 ft. (2m) to concrete
Model 6328: Operational after 25 drops from 6.5 ft. (2m) to concrete
Agency:CE, FCC, UL, and CSA
Radio Certification:US, Canada, EU

Symbologies

2 Dimensional:Data Matrix, QR Code
Linear:EAN13, UPC-A, EAN8, UPC-E, Interleaved 2 of 5, Code 39, Code 128, Code 93

Extended Details
