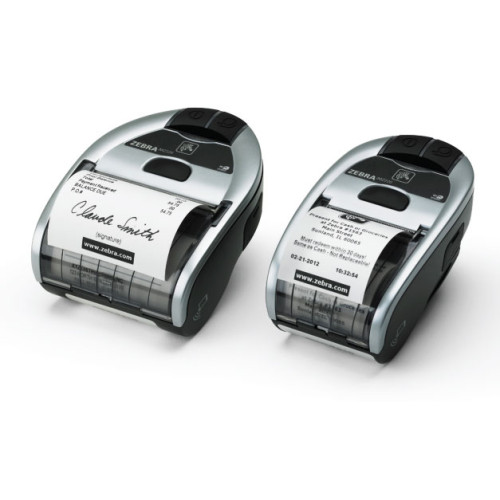

Zebra iMZ Series Portable Barcode Printer

Standard Features

• A receipt label mobile printer using direct thermal printing technology

• Primary vertical applications center around retail, mobile work force, transportation & logistics and hospitality

• Compatible with the latest Smartphone and Tablet operating systems

More Standard Features

• 203 dpi resolution (8 dots/mm)
• Print Speed: up to 4 ips (100 mm/s)
• CPCL and ZPL programming languages
• Resident fixed and scalable fonts
• 400 MHz 32-bit ARM processor with 128MB RAM
• 128 Flash supports downloadable programs, receipt formats, fonts, and graphics
• USB port
• 1.6 AH Li-Ion battery
• Optical out of media sensing using fixed center position sensor
• Tear bar for easy receipt dispensing
• Supports vertical and horizontal printing
• Printer can be used in any orientation
• Fixed media roll width
• "Clamshell" design for easy loading
• Management : Mirror, SNMP, Web server (with customizable HTML pages), Wavelink AvalancheR (future firmware update) Four LEDs as User Interface indicators
• 4' (1.2 m) drop to concrete (multiple times)
• IP42 rated for dust and water resistance (IP54 with Durability Enhancing Case)
• Label odometer
• Bluetooth security modes 1-4
• Bluetooth printing from Apple (iOS 5, iOS 6, iOS 7), Android and Windows devices
• Made for iPod, iPhone, iPad
• Link-OS environment capable
• Print Touch via NFC (near field communication)

Validated Handheld Terminals, Smartphones, and Software

• Wireless connectivity was tested with the leading handheld terminals to improve the integration of the complete solution with the iMZ printers. If a product is not documented as being interoperable there is no implication it does not work with the printer.

• Honeywell: Dolphin 6000, Dolphin 6100, Dolphin 7800, Dolphin 99EX, Tecton
• Motorola: MC909x, MC75A, MC55, ET1
• Intermec: CK71
• Android: Google Nexus 7, Motorola ET1, Samsung Galaxy Tablet
• Apple: iPod touch (5th and 4th generation), iPhone (5, 4S, 4), iPad (3rd generation and 2)
• A list of Independent Software Vendor (ISV) software applications that have been validated to work with the iMZ can be found at zebra.com/validation. Validated applications have gone through the Zebra Validation Program to verify the interoperability of the software applications with Zebra products.
