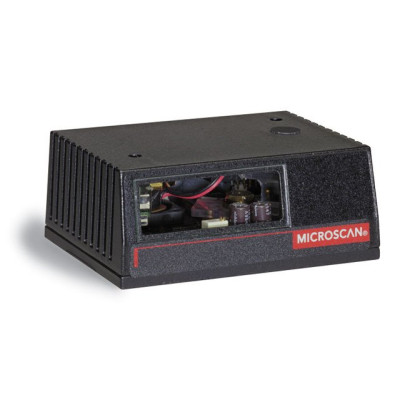

MS-810 Readers from Microscan
This product has been discontinued. It is replaced by the
Microscan MS-820.
The MS-810 fixed position scanner can read fast moving barcode labels up to 30 inches away, making it ideal for automated factories with standard 18-inch and 30-inch conveyor lines.
This exceptionally compact industrial barcode scanner is impervious to demanding external environmental conditions and invasive electrical noise from fast ransients and static discharge. The MS-810 offers incredible reliability and is ideal for high-speed barcode label scanning in industrial environments. Its spinning, 10-sided mirror projects a laser beam at a 60 degree scan angle, up to 8 inches wide.
|
View MS-810 Accessories
| Part # |
Description |
Availability | Price |
Order |
| FIS-0810-0009 |
MS-810, Single line, medium density, RS-232, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0010 |
MS-810, Raster line, medium density, RS-232, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0011 |
MS-810, Single line, high density, RS-232, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0012 |
MS-810, Raster line, high density, RS-232, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0013 |
MS-810, Single line, medium density, RS-422/485, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0014 |
MS-810, Raster line, medium density, RS-422/485, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0015 |
MS-810, Single line, high density, RS-422/485, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0016 |
MS-810, Raster line, high density, RS-422/485, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0017 |
MS-810, Raster line, medium density, 422/485, 10-28 volt, pharmacode, visible laser
|
YES |
Call for Details |
| FIS-0810-0018 |
MS-810, Raster, medium density, RS-232, 10-28 volt, pharmacode, visible laser
|
YES |
Call for Details |
| FIS-0810-0019 |
MS-810, Single line, low density, RS-232, 10-28 volt, visible laser
|
YES |
Call for Details |
| FIS-0810-0020 |
MS-810, Single line, low density, RS-422/485, 10-28 volt, visible laser
|
YES |
Call for Details |
Accessories
| Part # |
Description |
Availability | Price |
Order |
98-400002-02
|
IB-131 interface box with MS-810 to IB-130 cable
|
YES |
$174.00 |
 |
61-100031-04
|
MS-810/820 to IB-140 cable, 6-ft
|
YES |
$72.00 |
|
61-330004-01
|
MS-810/820 to SDS cable, 6-ft
|
YES |
$87.00 |
|
98-200026-01
|
Right angle down mirror kit
|
YES |
$72.00 |
|
83-000810
|
User manual hard copy
|
YES |
$47.00 |
|
61-100029-01
|
IB-131 daisy chain cable, 1-ft
|
YES |
$30.00 |
|
61-100030-02
|
IB-131 multidrop cable, 10-ft
|
YES |
$30.00 |
|
61-300026-03
|
Comm. Cable DB-25 male to DB-9 female, 6 foot RoHS.
|
YES |
$30.00 |
|
20-500013-01
|
DeviceNet Protocol Box, Works with IB-131
|
YES |
$594.00 |
|
FIS-0001-0017
|
Keyboard wedge Kit (Includes Wedge & Scanner to Wedge cable, Must order Wedge to PC cable)
|
YES |
$283.00 |
|
20-570006-34
|
Wedge to PC cable for IBM PS/2 keyboards
|
YES |
$30.00 |
|
20-570006-35
|
Wedge to PC cable for IBM XT/AT keyboards
|
YES |
$30.00 |
|
FIS-0001-0024
|
SDS Protocol Box
|
YES |
$594.00 |
|
97-100004-06
|
AC adapter Euro, (220VAC/ +24VDC)
|
YES |
$123.00 |
|
98-500006-01
|
Standard flat mounting plate kit
|
YES |
$20.00 |
|
98-200012-01
|
Adapter plate for universal stand
|
YES |
$20.00 |
|
98-000019-01
|
6-inch Universal stand with adapter plate
|
YES |
$87.00 |
|
99-440001-10
|
Package detector
|
YES |
$174.00 |
|
37-000001-01
|
CDROM; all user manuals, all ESPs, +++
|
YES |
$30.00 |
|
83-110014
|
SDS User Manual hard copy
|
YES |
$47.00 |
|
| 61-300026-01 |
This part is replaced by 61-300026-03.
Comm. Cable DB-25 male to DB-9 female, 6 foot
|
YES |
Call for Details |
| 97-100004-05 |
This part is replaced by 97-100004-15.
AC adapter USA, (110VAC/ +24VDC).
|
YES |
Call for Details |
| 20-610024-01 |
Trigger connector (for self wiring)
|
YES |
Call for Details |
| 20-610020-01 |
Power connector (for self wiring
|
YES |
Call for Details |
